Model ITK-38 Printer Paper Loading-Horizontal Position

Model ITK-38 Printer Paper Loading-Horizontal Position

1. – Paper Loading

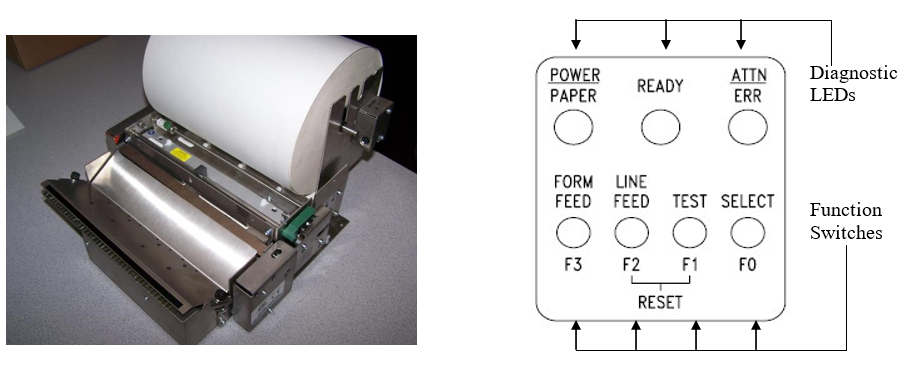

Apply power to the printer by turning on its rear mounted power switch. The printer will complete its initialization process and the beep indicating that it is ready to have paper loaded. For auto-loading, the printhead (see illustration A ) pressure lever, located on the top of the printer mechanism, must be closed (downward position). Ensure that the paper has a clean straight leading edge.



1.      Place the paper roll on the top rung (see illustration A) of paper holder and ensure the paper is being fed from under the paper roll.

2.      Feed the paper into the printer’s rear paper guide until it is detected by the printer’s paper sensor, which will then trigger the paper loading operation (see illustration B & C)



2. – Test Print

Once the paper has been loaded, print a test document to ensure that everything is operating properly. Pressing the

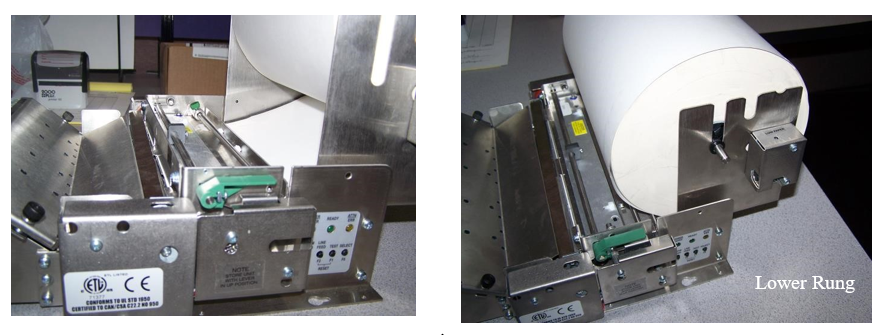

Select/F0 switch will place the printer in the OFFLINE mode, the READY LED will go out. Then, by pressing the TEST/F1 switch a test page will be printed. Place the paper roll on the lower rung of the paper holder (see illustration D)and slide the printer tray back inside the kiosk.
