Model ITK-38 Printer - Paper Loading-Vertical Position
1 - Paper Loading

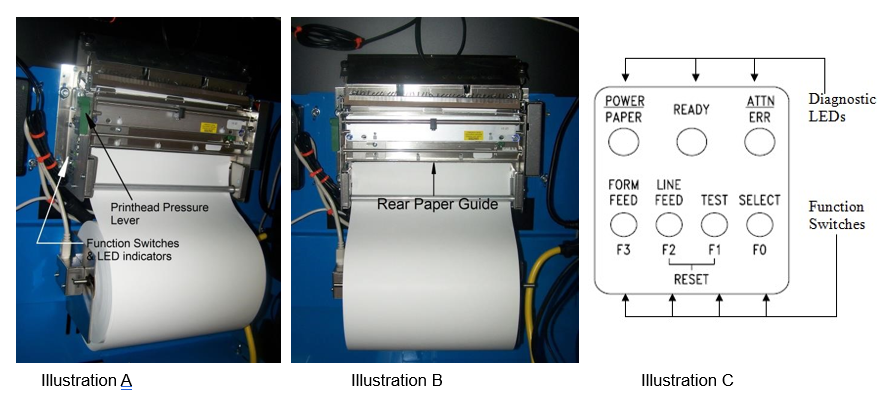

Apply power to the printer by turning on its rear mounted power switch. The printer will complete its initialization process and then beep indicating that it is ready to have paper loaded. For autoloading, the printhead pressure lever (see illustration A), located on top of the printer mechanism, must be closed (downward position). Insure that the paper has a clean straight leading edge. Feed the paper into the printer’s rear paper guide (see illustration B) until it is detected by the printer’s paper sensor, which will then trigger the paper loading operation.
2 - Test Print
Once the paper has been loaded a test document should be printed to insure that everything is operating properly. Pressing the SELECT/F0 switch (see illustration C) will place the printer in the OFFLINE mode, the READY LED will go out. Then, by pressing the TEST/F1 switch a test page will be printed.
